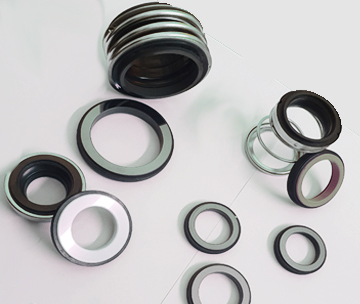

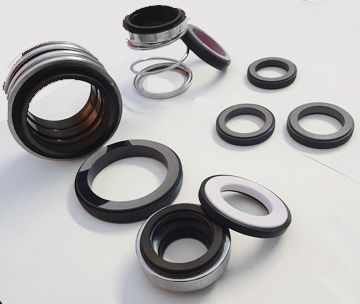

Bellow Seal: Rubber
Rubber Bellow Mechanical Seals can be of use regardless of direction of rotation since the driving torque is not transmitted through the coil spring. The required driving torque is through the spring and spring holder. The single coil spring will avoid effluent particle.
Seal Parts:
Mating Ring, Seal Ring, Rubber Cup, Bellow, Spring, Grubscrew, Drive Collar, Retainer, Spring Holder
Parameters
Temperature:
(-)50c to (+)350c
Size:
15mm to 100mm
Pressure:
Up to 25 bars
RPM:
3000
Seal Material:
SS 316 body parts & spring
Seal Faces:
Carbon, Ceramic, Tungsten Carbide, Silicon Carbide, etc
